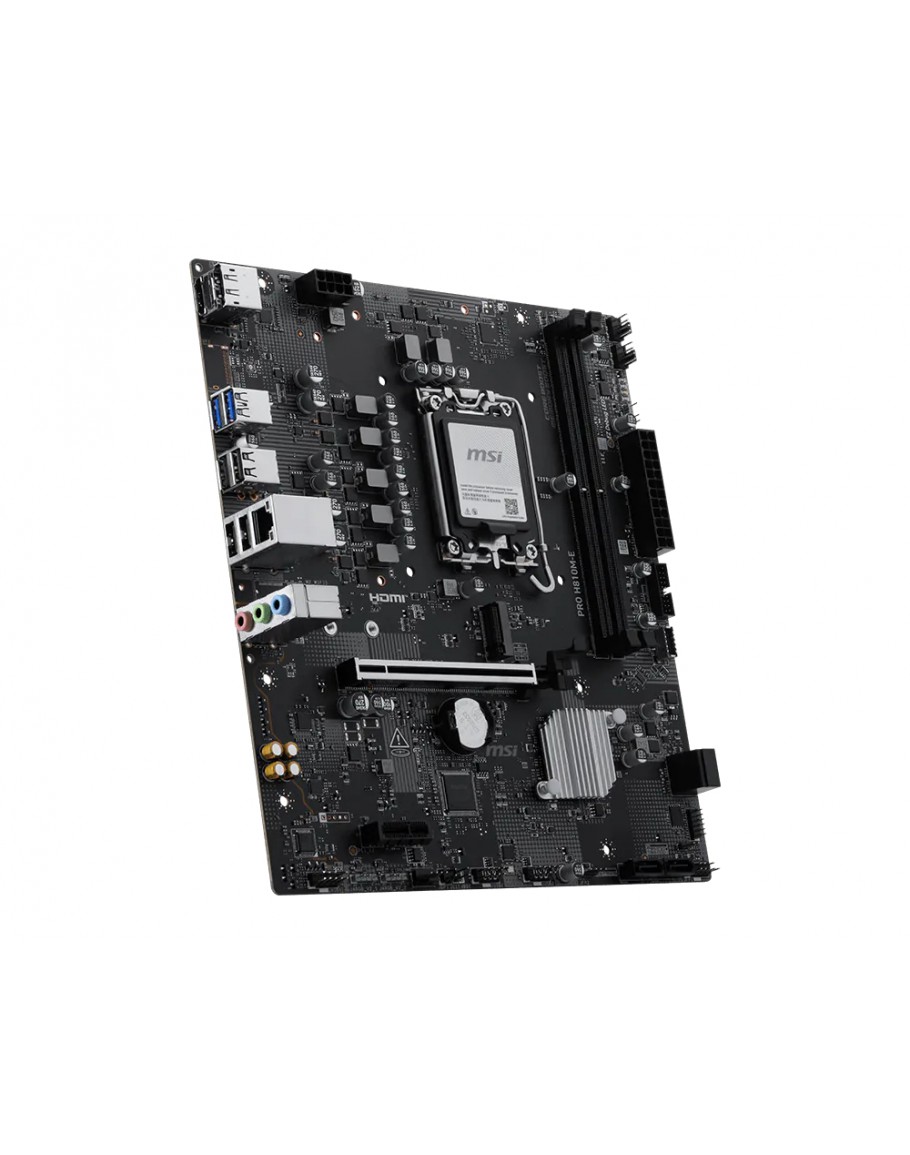

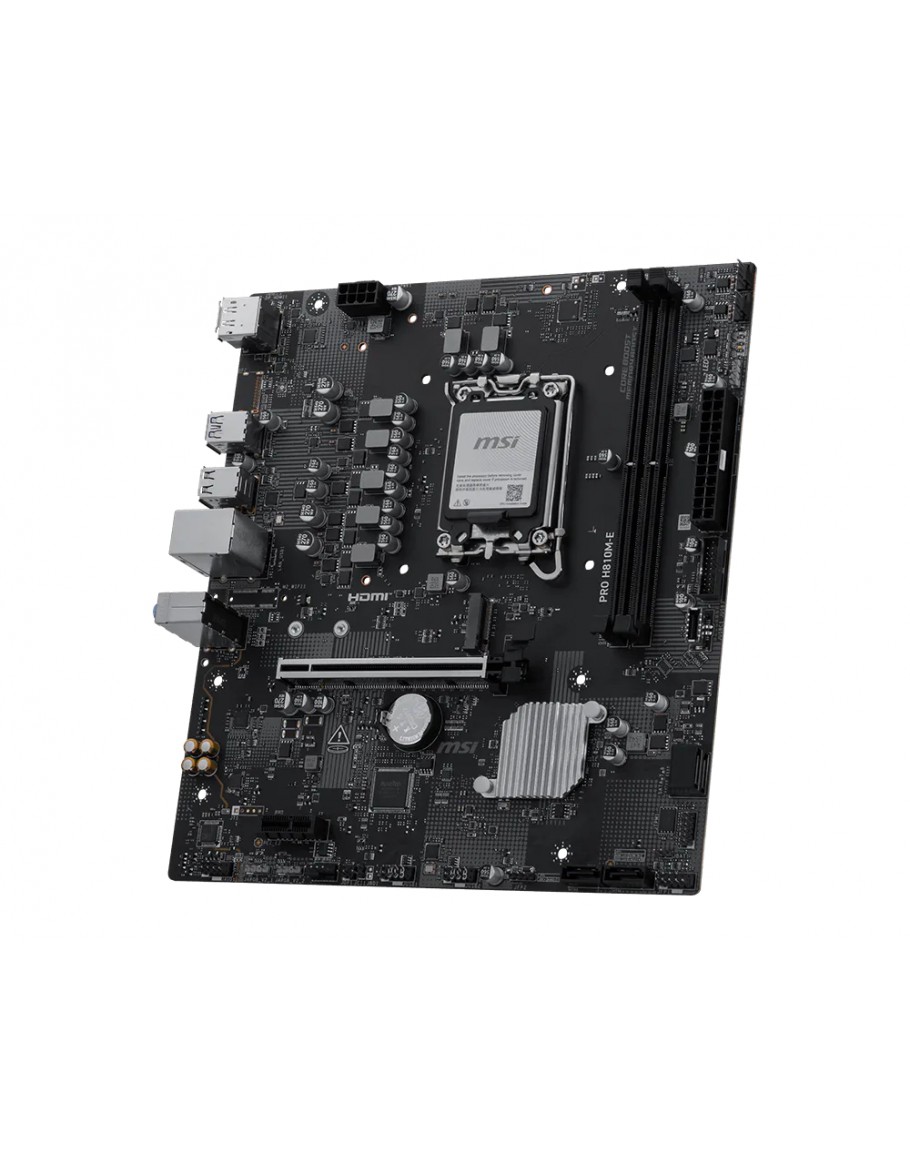

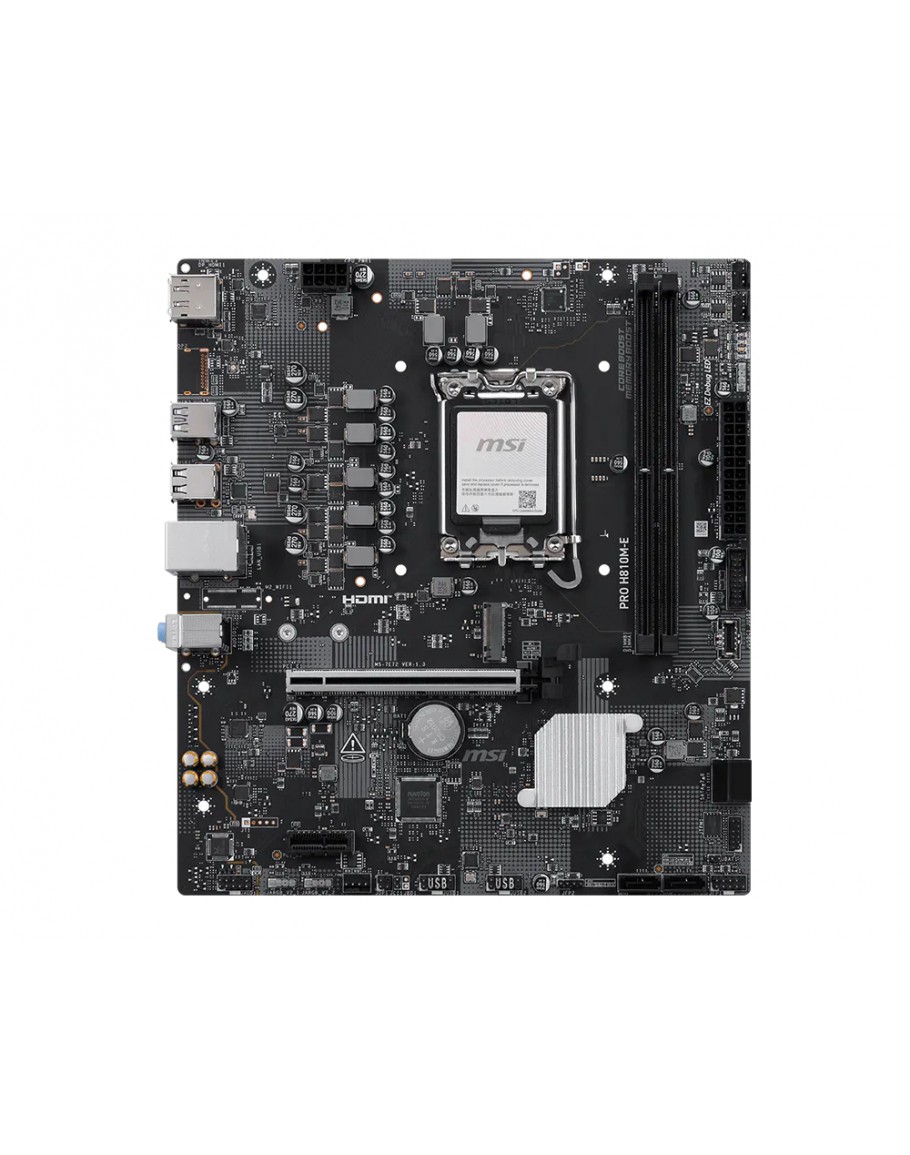

MSI PRO H810M-E
- €90.24
| Vendor_url | https://www.msi.com/Motherboard/PRO-H810M-E | |
| Manufacturer | MSI | |
| Socket | LGA 1851 | |
| Graphics | 1x HDMI™; Support HDMI™ 2.1, maximum resolution of 4K 60Hz*; 1x DisplayPort; Support DisplayPort 1.4, maximum resolution of 4K 60Hz*; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed | |
| CPU's supported | Supports Intel® Core™ Ultra Processors (Series 2) | |
| Chipset | INTEL H810 | |
| Expansion slots | 1x PCI-E x16 slot; 1x PCI-E x1 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) | |
| Storage | 1x M.2; M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; 4x SATA 6G; *Please refer to the manual for M.2 SSD heatsink restrictions. | |
| Memory type | 2x DDR5 UDIMM, Maximum Memory Capacity 128GB; Memory Support DDR5 7200 - 4800 (JEDEC) MT/s; Max. overclocking:; • 1DPC 1R Max speed up to 7200 MT/s; • 1DPC 2R Max speed up to 6400 MT/s; Supports Intel® POR Speed and JEDEC Speed; Supports Dual-Controller Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM | |

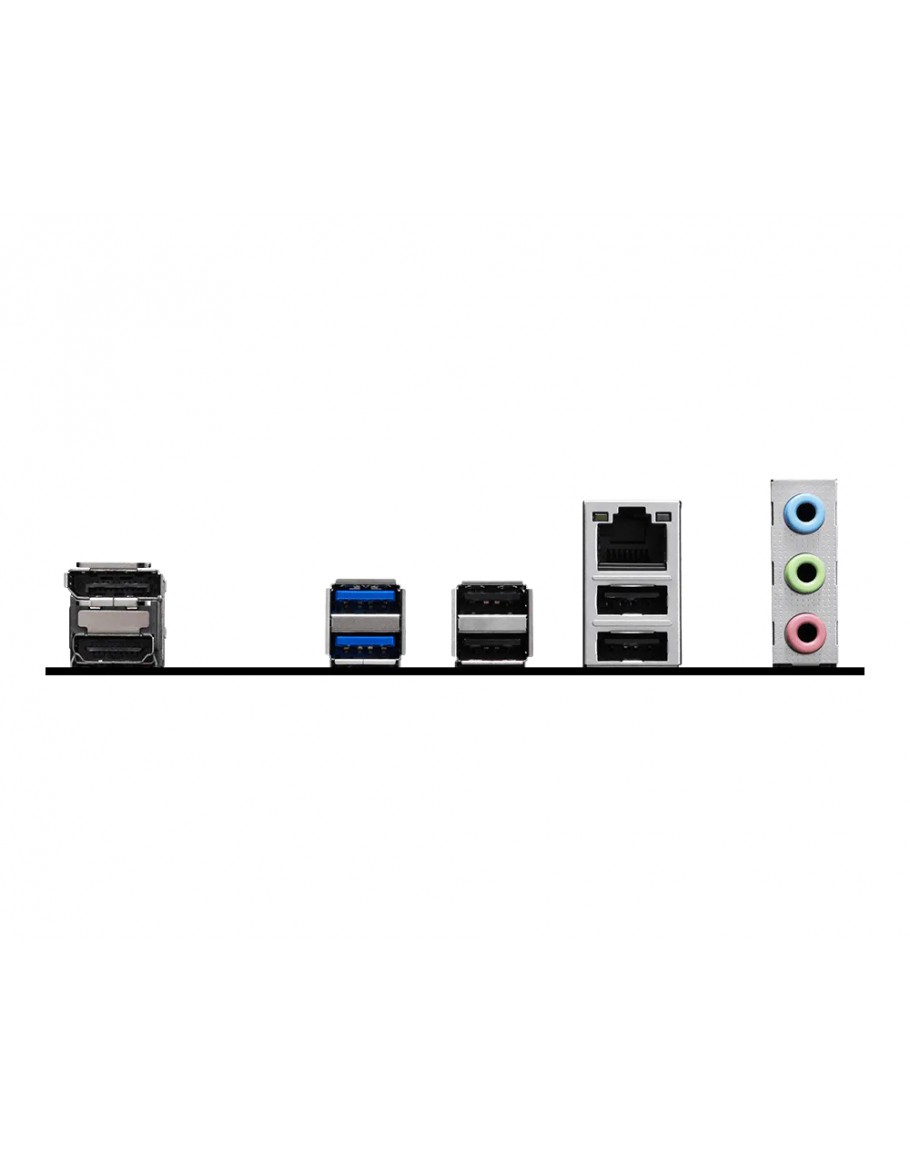

| Rear panel I/O | DisplayPort; USB 5Gbps Type-A; USB 2.0; 2.5G LAN; Audio Connectors; HDMITM; USB 2.0 | |
| USB | 4x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); 1x USB 5Gbps Type C (Front) | |
| Connectors | 1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 2x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 5Gbps Type C ports | |
| Audio | Realtek® ALC897 Codec; 7.1-Channel High Definition Audio | |
| Lan | Realtek® 8125D 2.5Gbps LAN | |
| Form factor | mATX, 220mmx243.84mm | |
| OS | Support for Windows® 11 64-bit | |
| Other | 4x EZ Debug LED; 1x EZ Memory Detection LED |
