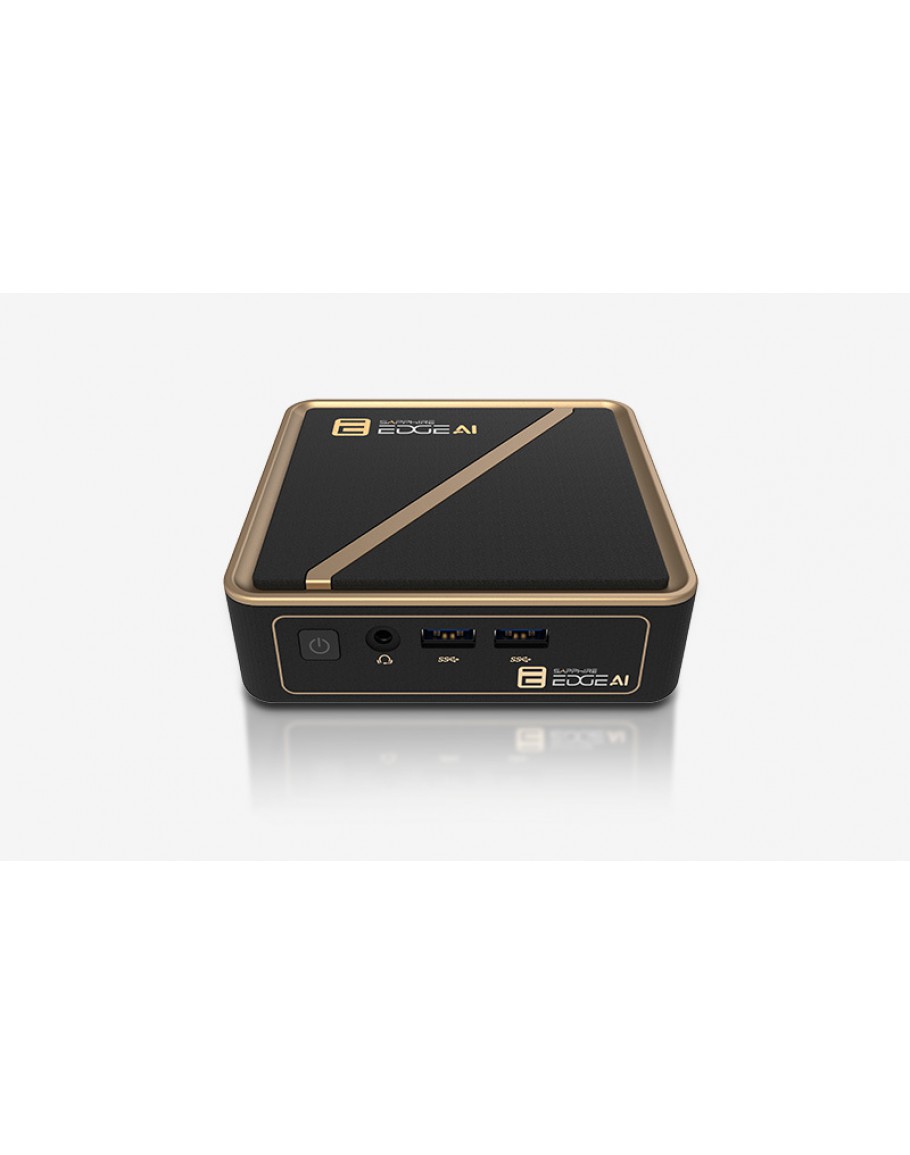

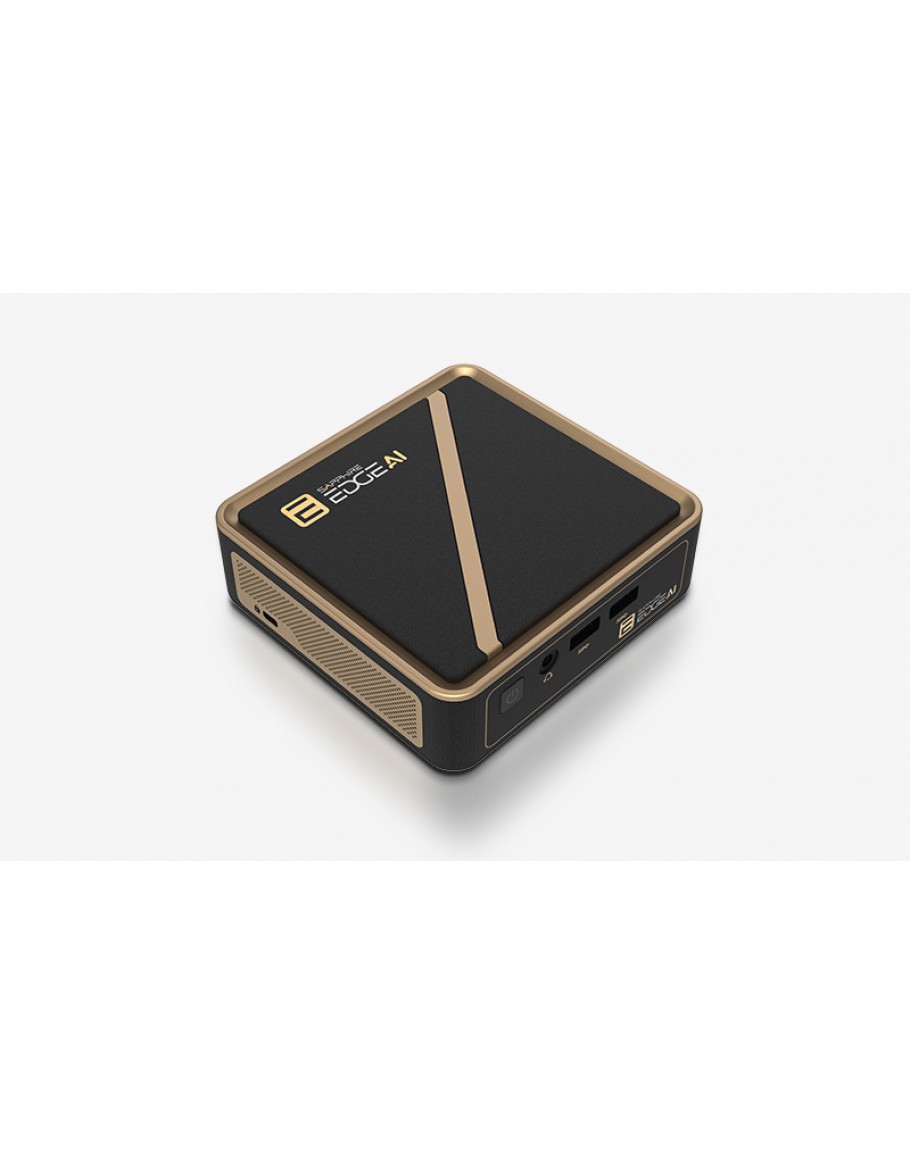

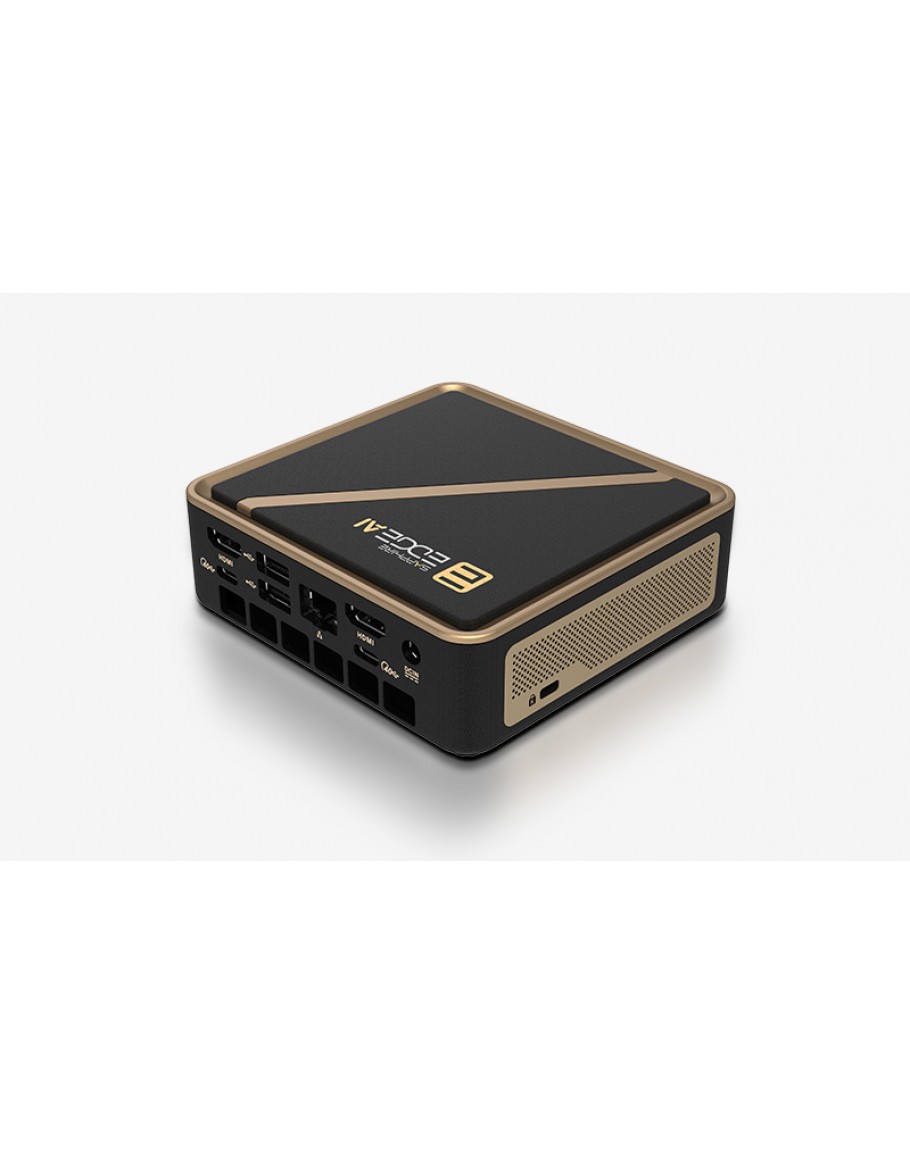

SAPPHFIRE MINI PC EDGE AI 340
- €611.85
| Vendor_url | https://www.sapphiretech.com/en/commercial/edge-ai-mini-pc#Specification | |
| Manufacturer | Sapphire | |
| Part number / Product code | 4H020-06-40G | |
| Model | EDGE AI 340 | |
| Mainboard | Proprietary Mini PC Mainboard; AMD FP8 Platform | |
| Chipset | AMD Ryzen AI 300 Series Integrated Platform | |
| CPU model | AMD Ryzen AI 5 340, 6 Cores / 12 Threads, Up to 4.8 GHz, 22 MB Total Cache, NPU (Up to) 50 TOPS | |
| Memory size | No RAM Installed; Up to 96 GB Supported | |
| Memory type | DDR5-5600 SO-DIMM | |
| Memory | 2 × DDR5 SO-DIMM Slots; Dual Channel; Up to 96 GB (2 × 48 GB) | |
| Graphics | Integrated AMD Radeon 840M Graphics | |
| SSD | Supports M.2 NVMe SSD | |
| Storage | 1 × M.2 2280 PCIe 4.0 x4; 1 × M.2 2242 PCIe 4.0 x4 | |
| Disk specifications | PCIe NVMe SSD Support | |
| Display | Supports Up to 4 External Displays | |

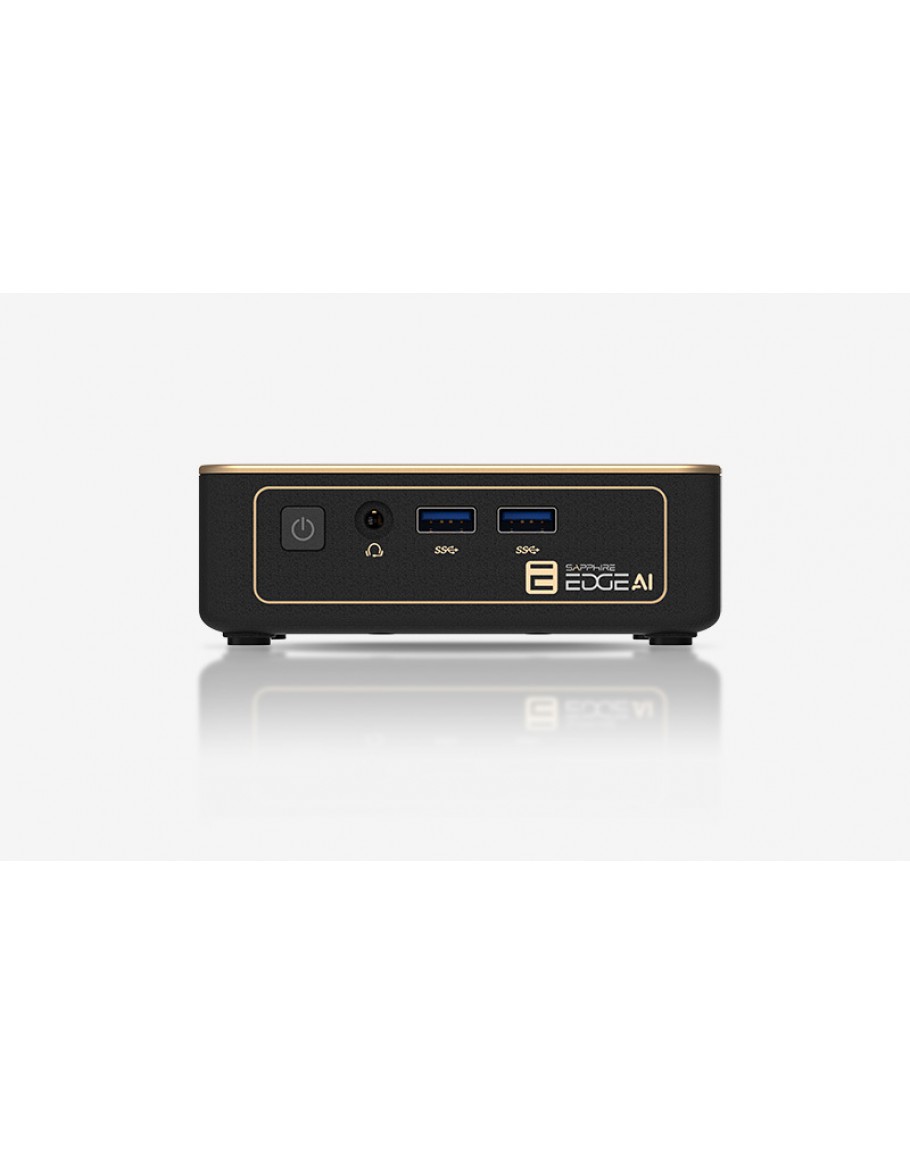

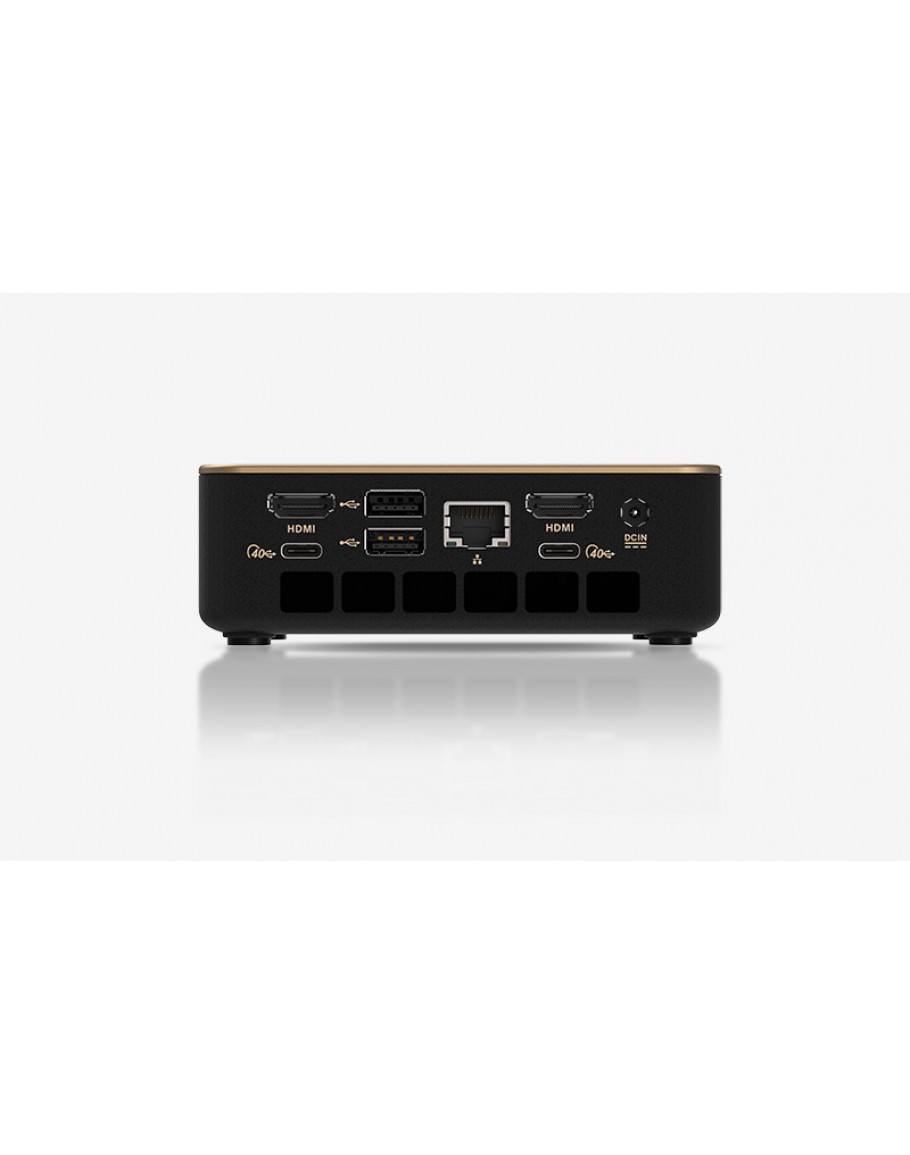

| I/O | Front: 2 × USB 3.2 Gen 2 Type-A, 1 × 3.5 mm Audio Jack; Rear: 2 × USB4 Type-C, 1 × USB 3.2 Gen 2 Type-A, 1 × USB 2.0 Type-A, 2 × HDMI 2.1, 1 × RJ-45, 1 × DC-In | |
| Interfaces/Ports | USB4 40 Gbps; USB 3.2 Gen 2 10 Gbps; USB 2.0; HDMI 2.1; 2.5GbE LAN; 3.5 mm Audio | |
| Expansion slots | 1 × M.2 2280 PCIe 4.0 x4; 1 × M.2 2242 PCIe 4.0 x4; 1 × M.2 2230 Key E (Occupied by Wireless Module) | |
| LAN | 2.5 Gigabit Ethernet | |
| Wireless | Wi-Fi 6E (802.11ax) | |
| Bluetooth | Bluetooth 5.2 | |
| Built-in devices | AMD Ryzen AI NPU; Integrated Graphics; Wi-Fi / Bluetooth Module | |
| Audio | Realtek ALC256; 3.5 mm Audio Jack; HDMI / USB-C Digital Audio | |
| Power supply | External 120 W Power Adapter; 19 V DC / 6.32 A | |
| Power | CPU Default TDP: 28 W | |
| Color | Black / Gold | |
| Security | Kensington Security Lock Slot | |
| Features | AMD Ryzen AI NPU Up to 50 TOPS; Copilot+ PC Capable; Quad Display Support; Wi-Fi 6E; 2.5GbE; USB4 | |
| Mechanical design | Compact Mini PC; Active Cooling; VESA Mounting Support | |
| Dimensions | 117 × 111 × 30 mm (W × D × H) |
