НОВО

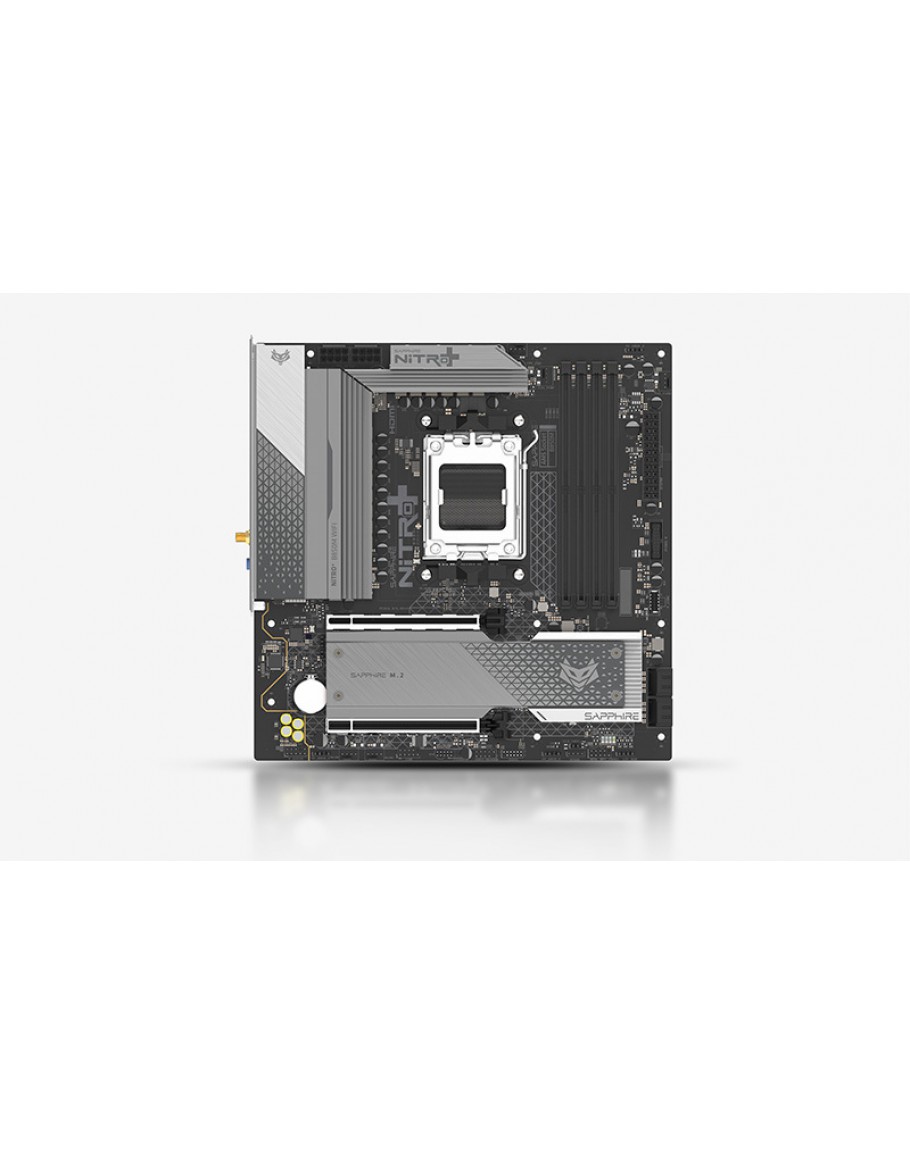

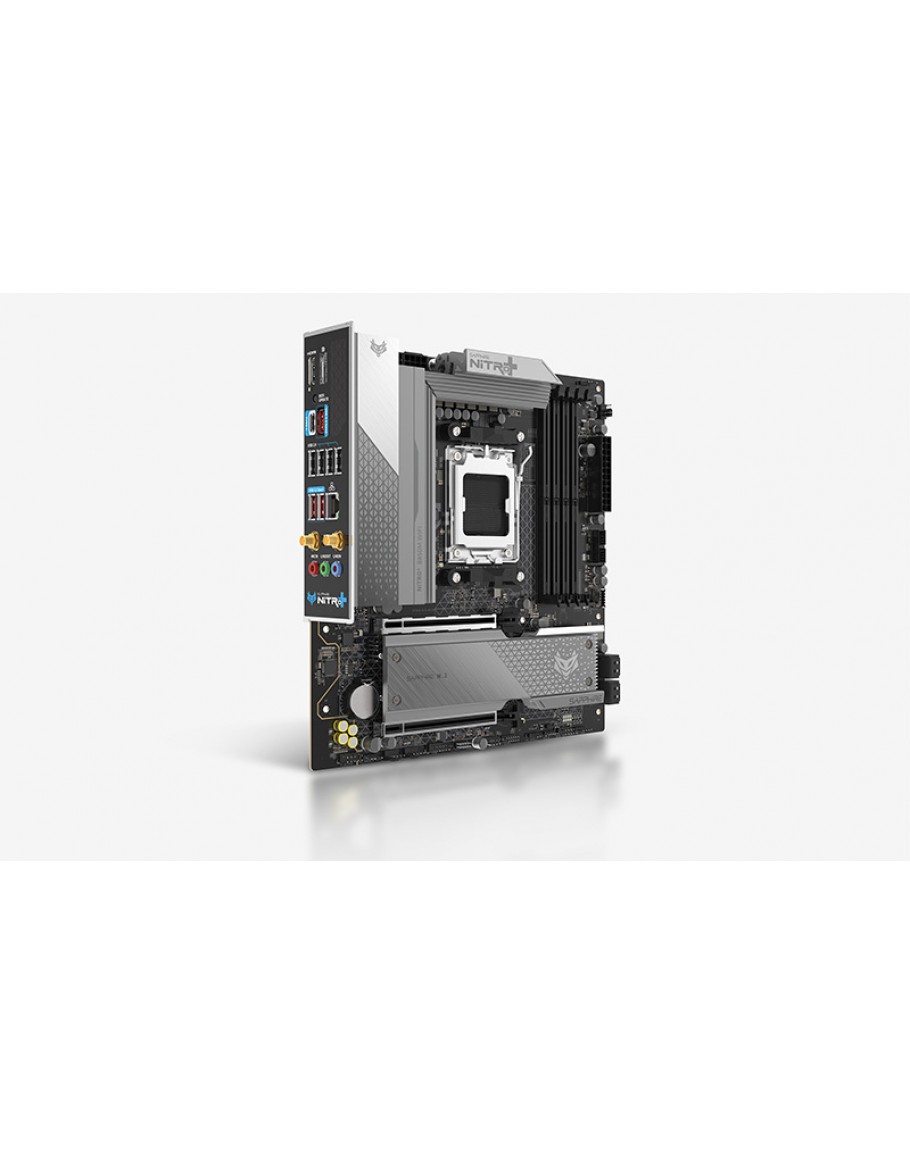

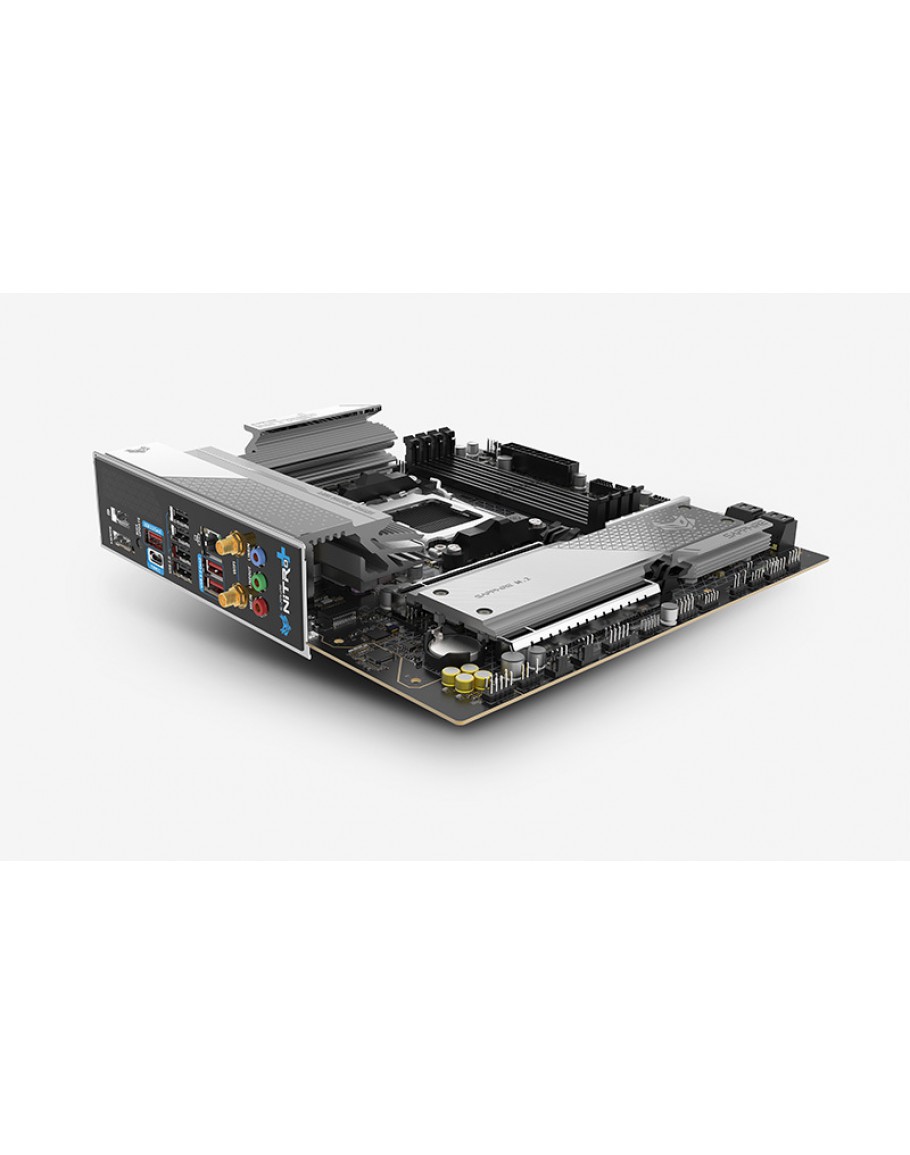

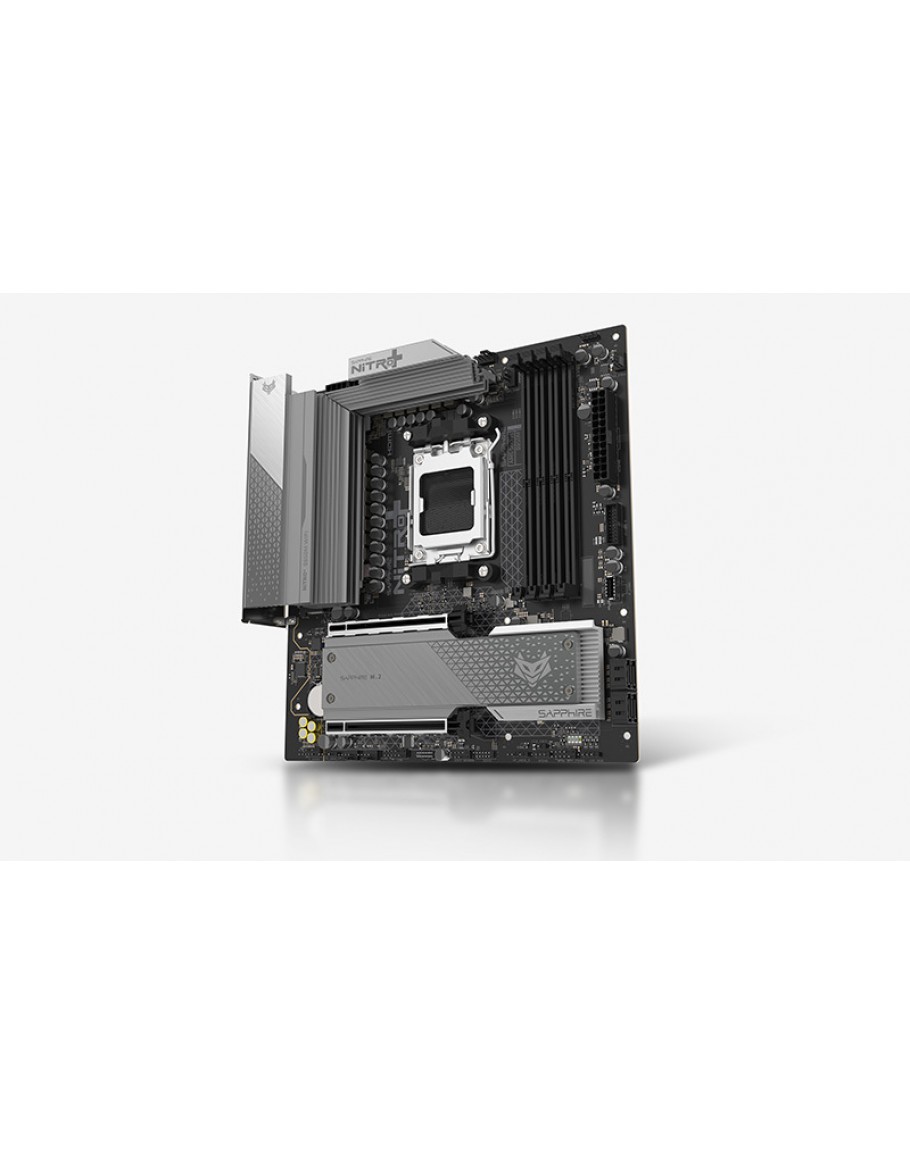

SAPPHIRE NITRO+ B850M MATX WF6
- €171.22
| Vendor_url | https://www.sapphiretech.com/en/consumer/mb_nitro_b850m-wifi | |
| Manufacturer | Sapphire | |
| Model | NITRO+ B850M WIFI | |
| Socket | AMD AM5 | |
| CPU's supported | Supports AMD Socket AM5 Processors including Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors | |
| Chipset | AMD® B850 | |
| Expansion slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x4 in 16x slot | |
| Storage | 1x PCIe 5.0 M.2, 1x PCIe 4.0 M.2, 4x SATA | |
| Memory type | 4x DIMMS, Dual Channel DDR5, Maximum Memory Capacity 256GB (4x 64GB), up to 8000 MHz(OC) | |
| Rear panel I/O | 1 × DisplayPort; 1 × HDMI; 1 × RJ-45; 4 × USB 2.0; 3 × USB 3.2 Gen 2 Type-A; 1 × USB 3.2 Gen 2 Type-C; 3 × Audio Jacks; 2 × Wi-Fi Antenna Connectors; BIOS Flash Button | |
| USB | Rear: 4 × USB 2.0, 3 × USB 3.2 Gen 2 Type-A, 1 × USB 3.2 Gen 2 Type-C; Front Headers: 1 × USB 3.2 Gen 1 Type-C, 1 × USB 3.2 Gen 1 (2 Type-A Ports), 1 × USB 2.0 (2 Type-A Ports) | |
| Connectors | 4 × SATA; 2 × M.2 Storage Slots; Front USB Headers | |
| Audio | Realtek® ALC897 HD Audio, 5.1 Channel | |
| Lan | Realtek® RTL8125BG 2.5 Gigabit Ethernet | |
| Wireless | M.2 WiFi 6 Module, Support 802.11 a/b/g/n/ac/ax, 2.4 GHz/ 5 GHz band | |
| Bluetooth | Bluetooth 5.3 Support | |
| BIOS | SAPPHIRE CORE BIOS; One-Click BIOS Flash | |
| Form factor | Micro-ATX | |
| Dimensions | 244 × 244 mm |
