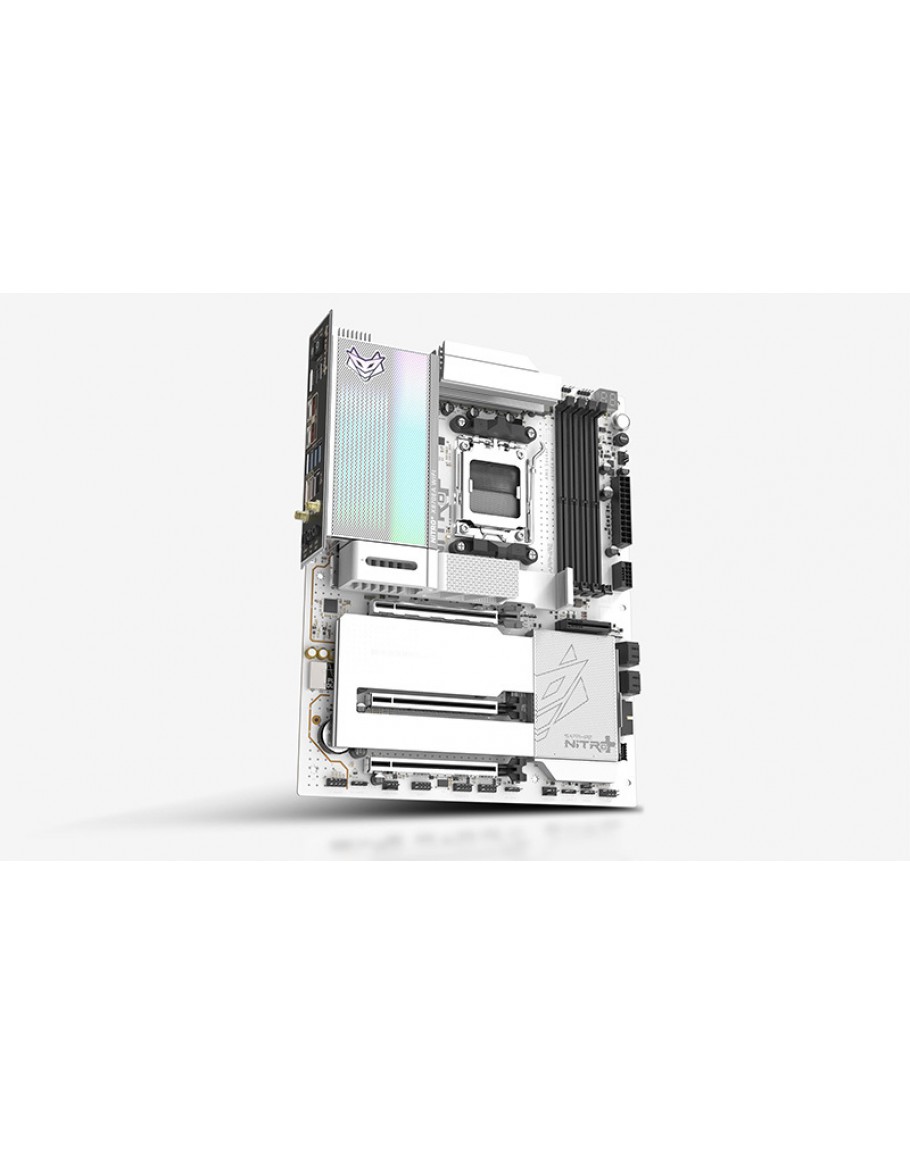

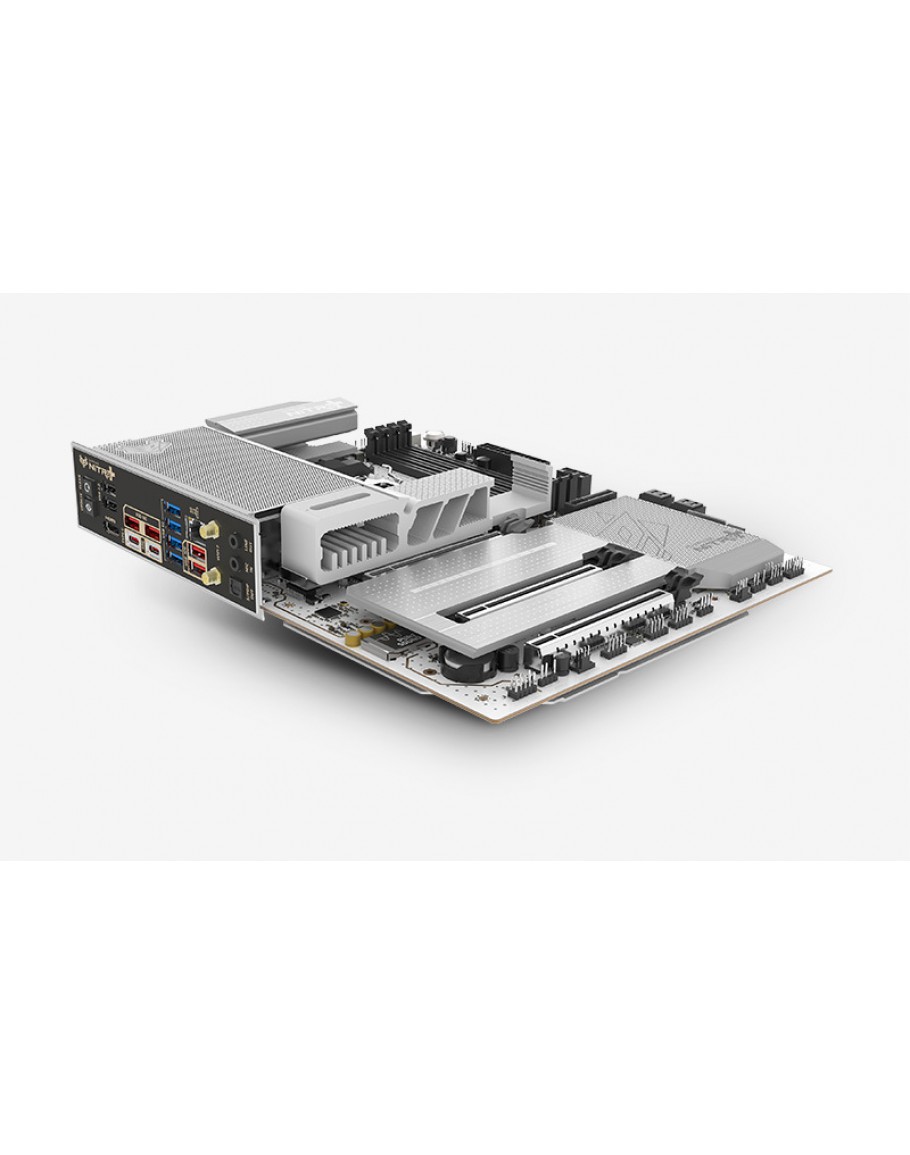

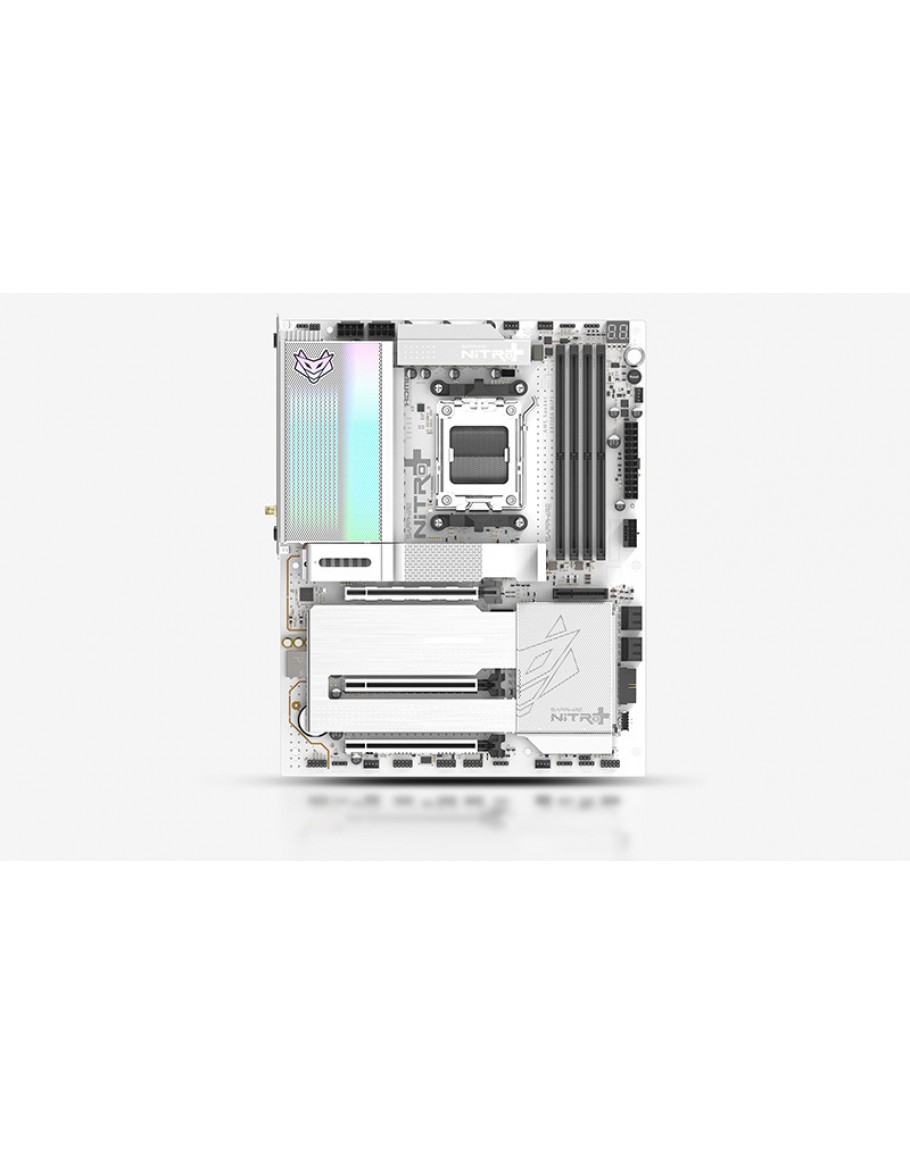

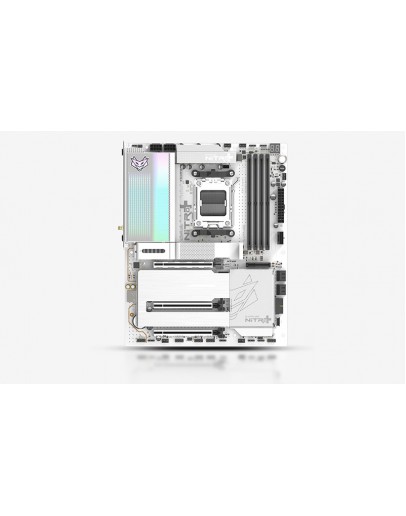

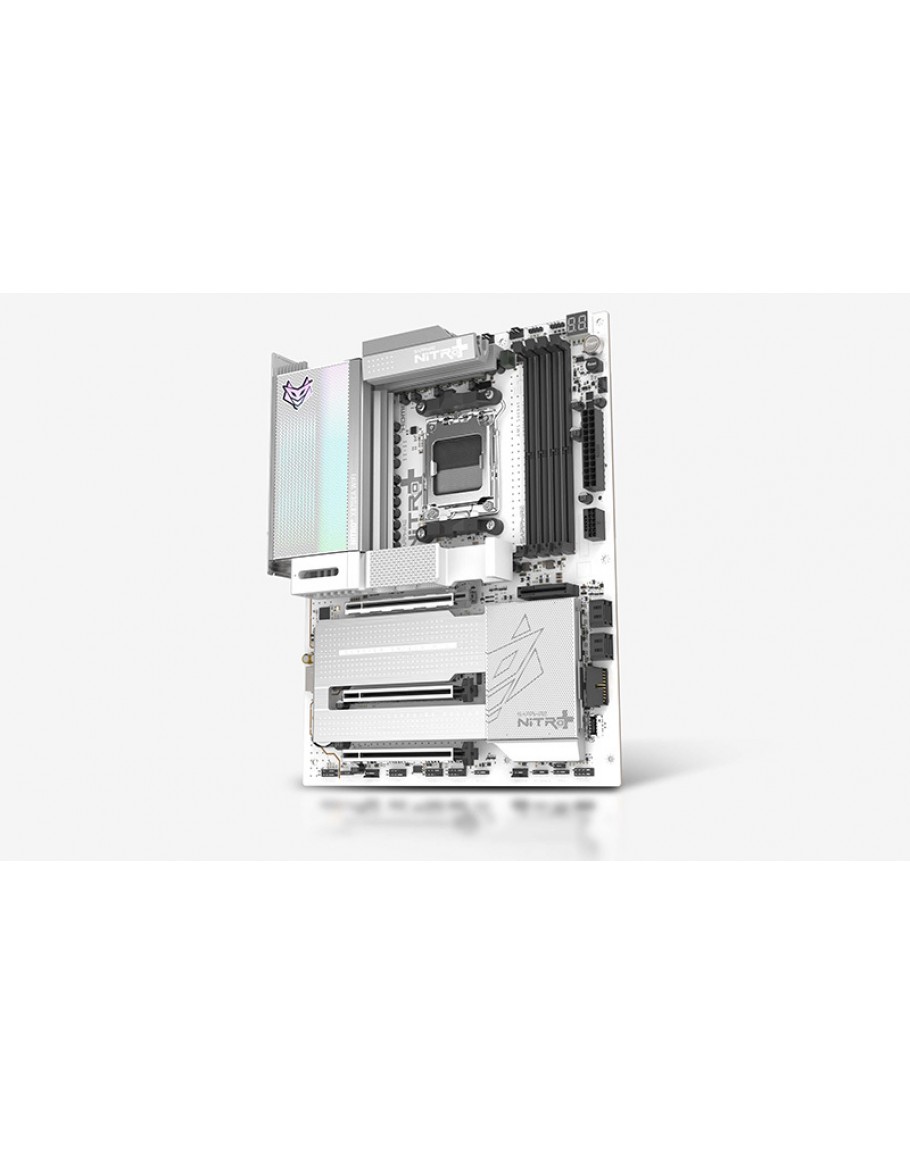

SAPPHIRE NITRO+ X870EA PHANTOM
- €442.51
| Vendor_url | https://www.sapphiretech.com/de-de/consumer/mb_nitro_x870ea-ple-polar | |
| Manufacturer | Sapphire | |
| Part number / Product code | 52122-11-40G | |
| Model | NITRO+ X870EA PhantomLink Polar Edition | |
| Socket | AMD AM5 | |
| CPU's supported | AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors | |
| Chipset | AMD X870E | |
| Expansion slots | 1 × PCIe 5.0 x16; 2 × PCIe 4.0 x4 (x16 Physical Slots); PhantomLink GC-HPWR Graphics Power Slot | |
| Storage | 2 × PCIe 5.0 M.2; 2 × PCIe 4.0 M.2; 4 × SATA | |
| Memory type | 4 × DDR5 DIMM; Dual Channel; Up to 256 GB (4 × 64 GB); Up to 8400 MHz (OC) | |
| Rear panel I/O | Rear: 2 × USB4 Type-C (40 Gbps), 4 × USB 3.2 Gen 2 Type-A, 4 × USB 3.2 Gen 1 Type-A, 2 × USB 2.0; Front: 1 × USB 3.2 Gen 2x2 Type-C Header (20 Gbps, 30 W PD), 1 × USB 3.2 Gen 1 Header (2 Ports), 2 × USB 2.0 Headers (4 Ports) | |
| Connectors | 4 × SATA; 4 × M.2 SSD Slots; PhantomLink GC-HPWR; Front USB Headers | |
| Audio | Realtek ALC897 HD Audio; 5.1-Channel; Optical S/PDIF | |
| Lan | Realtek RTL8126 5 Gigabit Ethernet | |
| Wireless | Wi-Fi 7 (802.11be); 2.4 / 5 / 6 GHz; 320 MHz Channel Support | |
| Bluetooth | Bluetooth 5.4 | |
| Form factor | ATX | |
| Dimensions | 305 × 244 mm |
